Heater 5.5kW | 90-Degree with 45

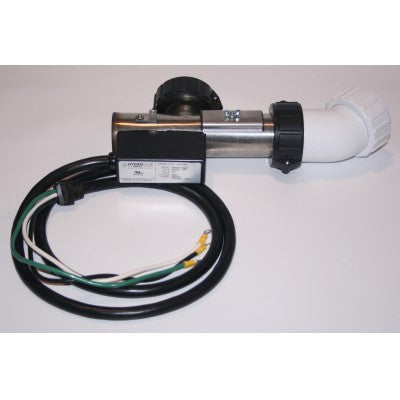

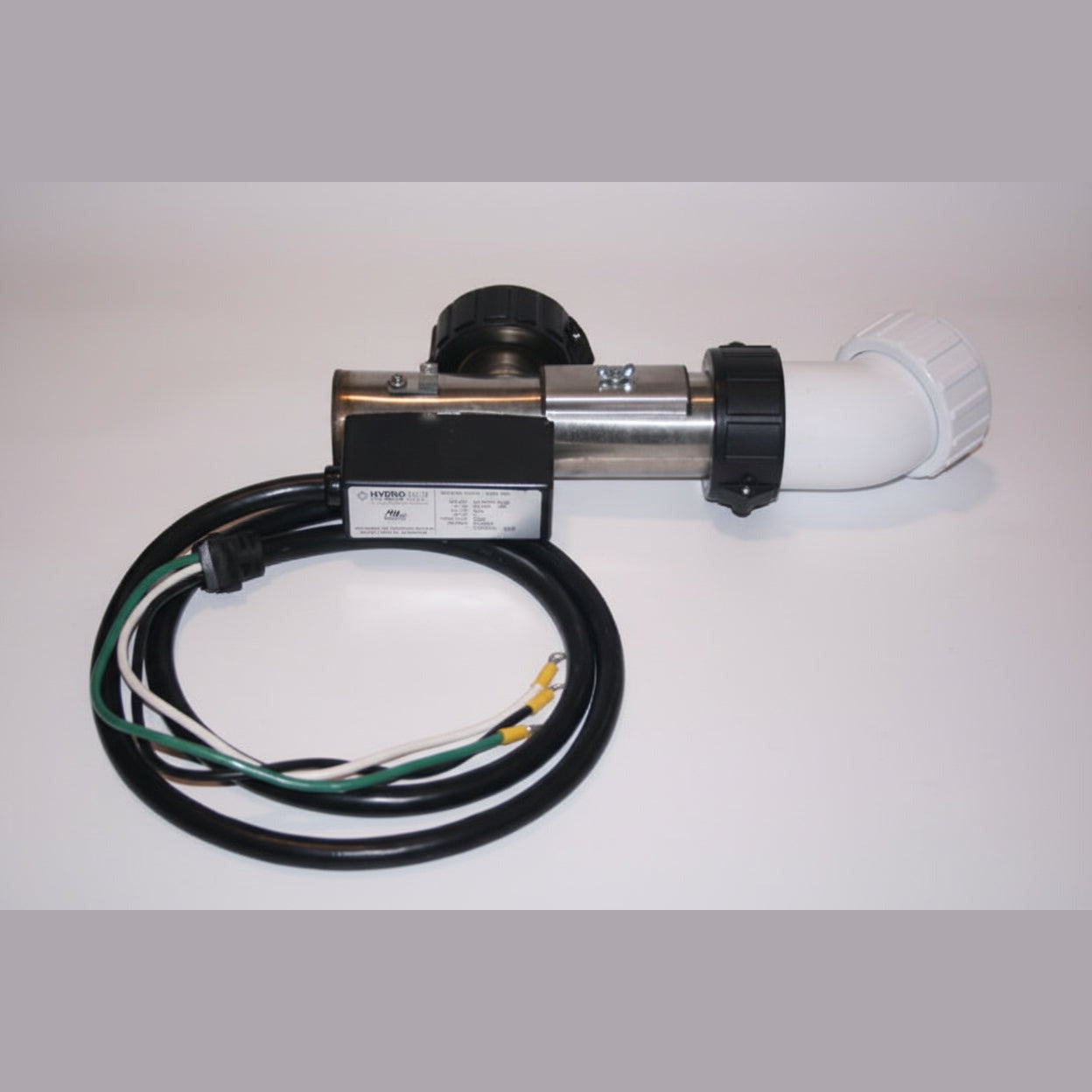

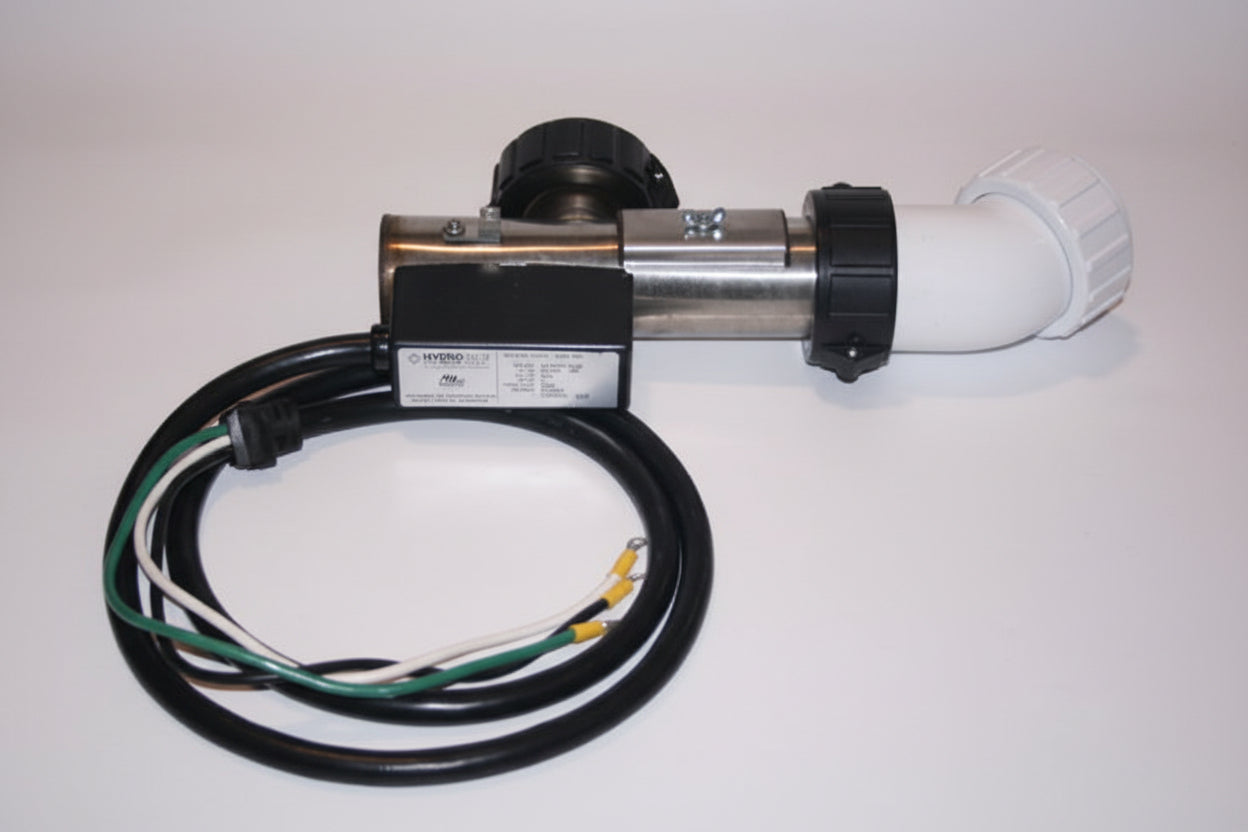

The 5.5kW 90° with 45 Heater is a 5.5 kilowatt replacement heater for Arctic Spas built with a 90-degree elbow on one end of the stainless tube plus a 45-degree fitting — the configuration for equipment bays where the plumbing makes a compound turn at the heater rather than running straight through or taking a single corner. Includes the pressure-switch port and the integrated power cord pigtail ready to land on the motherboard.

When you'll need a new heater: spa heaters typically last 5-10 years. The common failures are the element scaling over and burning out (preventable with a Scale Free routine), the high-limit sensor tripping repeatedly from internal corrosion, or visible leaks at the heater body. The classic symptom: pumps run fine, temperature won't hold.

Will this fit my spa? Yes, on Arctic Spas whose equipment bay uses the 90°+45° heater configuration. Straight-through bays take the 5.5kW Flo-Through; single-corner bays take the 5.5kW 90-Degree. Bring a photo of your equipment bay to one of our three Ontario showrooms if you're not sure.

Important: heater installation is 240V GFCI-protected electrical work — most owners book a service tech. Replace the heater union gaskets at the same time (2" Flat O-ring Gasket).
